X SERIE

Wireless compatible with JUUKO radio remote system
Wide range of input voltage from 24~264V AC/DC
Status LED
Internal BootLoader, up firmware to the date by using computer
Wireless pairing to transmitter

Download brochure

Technical data

Weight
approx. 295g
Size
122×86×34mm
Antenna
Internal
SMA External
SMA 2M / 5M cable magnetic

Frequency band
315 / 418 / 429 / 433 / 447 / 470 / 868 / 915 MHz / 2.4 GHz
Number of functions
up to 3 on/off + EMO
Power supply
90~460V AC / DC
Stop/Safety contact rating
6A

Command contact rating
5A (250V AC)
Command response time
~ 25 ms
Safety category for the Stop protection (EN ISO 13849-1)
PL d (optional)*
Protection degree IP65
Operating and storage temperature (-25°C)~(+55°C) / (-40°C)~(+85°C)
Housing material PA6 (GF30%)

So Mini, so Lightweight

Due to its small size, you can install it easily and need not too much space.

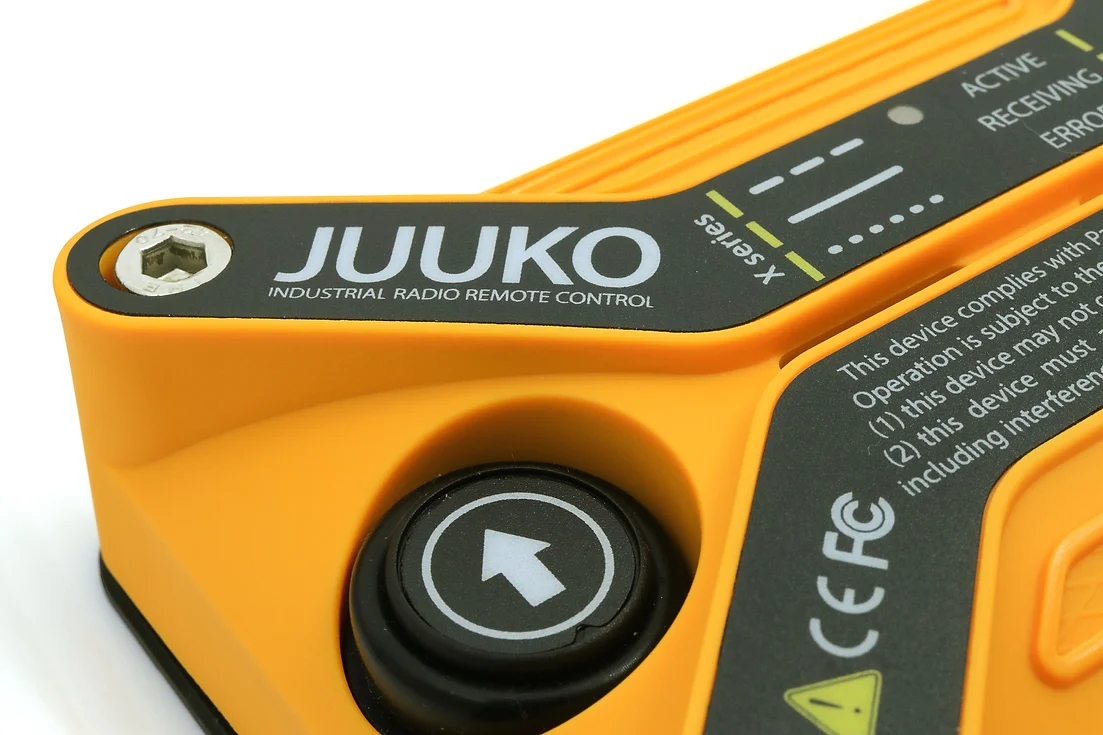

Considerate Buttons

You can operate the receiver directly without the transmitter ── just push the buttons on the receiver. Moreover, it can be operated simultaneously by two people.

Pretend to be Wireless

It can be connected with the wire through the hole at the back of the device.
